Busbar Chamber Box

A Busbar chamber box is a high-capacity electrical enclosure that houses rigid conducting bars used to distribute power from a single high-current source to multiple outgoing feeders. It works as a central distribution hub within low-voltage systems, replacing the need to branch together cables with a mechanically strong arrangement.

In industrial and commercial infrastructure, a Busbar chamber box is more reliable by managing thermal stress, electromagnetic forces, and short-circuit conditions better than cable systems. Its design gives safer power distribution in factories, hospitals, commercial complexes, and high-rise buildings where load stability and compliance are non-negotiable.

Busbar Chamber Box Configurations and Types

The configuration of a busbar system is based on the type of load, installation area, and space availability. In terms of pole configuration, they are typically available as:

• 2-Pole (Single Phase): Suitable for light commercial and small networks where load demand is moderate.

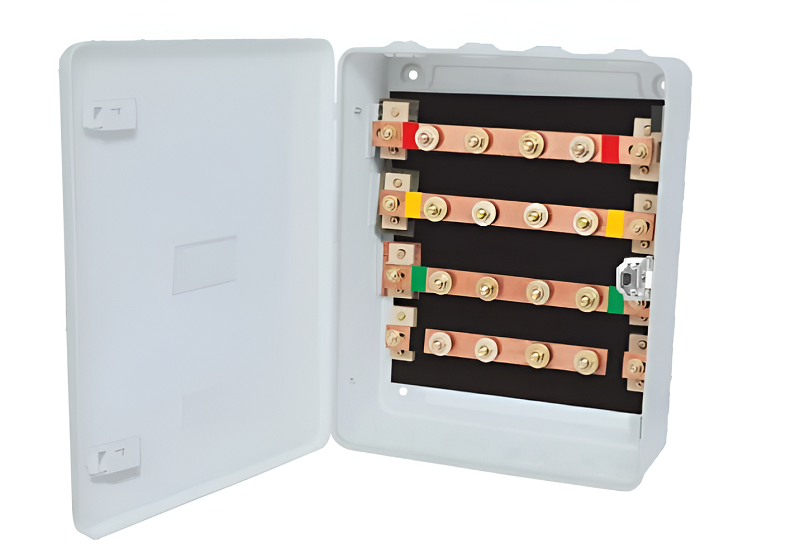

• 4-Pole (TPN – Three Phase + Neutral): The industrial standard, ensuring balanced three-phase distribution along with neutral continuity.

The physical arrangement of busbars also changes as per the amperage requirements and panel space. Lower-rated ones generally use a single-layer layout, where conductors are placed side-by-side with adequate air gaps for heat dissipation. Higher-rated systems use stacked or step-type arrangements, wherein busbars are mounted vertically on insulated supports to optimise panel space.

Enclosure material is another differentiator. Most industrial installations look for CRCA sheet steel enclosures, usually 1.6 mm thick and powder-coated to resist corrosion. In places where chemicals are used or there’s mostly outdoor work, thermoplastic or polycarbonate housings give better insulation and UV stability. If planning to buy a busbar chamber box, the needs should align with the configuration.

Current Ratings, Dimensions and Capacity Range

When comparing busbar chamber box prices online, amperage is not the only thing you should look at. Also focus on short-circuit rating, conductor material, and enclosure thickness. The higher the withstand ratings, the stronger the mechanical bracing, vis-à-vis, better fault tolerance.

Construction Material and Protection Features

The durability of a busbar chamber depends heavily on conductor quality and insulation integrity. High-end chambers use ETP-grade copper, often silver or tin plated to reduce oxidation and maintain low contact resistance over time. Aluminium conductors are also used in higher ampere ratings where cost efficiency is prioritised, though they require larger cross-sections due to lower conductivity.

The enclosure is generally fabricated from CRCA steel with powder coating and phosphating treatment to prevent corrosion. Doors are made with a safe locking system and proper earthing studs to ensure safe isolation during maintenance.

Protection features typically include:

• DMC/SMC moulded insulators tested for glow-wire resistance up to 960°C
• IP42 for indoor installations
• IP54/IP55 options for dust and splash resistance
• Compliance with IS 8623 or IEC 61439

Use in Power Distribution and Electrical Panel Systems

In practical applications, a busbar box forms the backbone of structured power distribution. Within LT panels, it connects the incoming MCCB to multiple outgoing MCBs, enabling controlled distribution without excessive cable routing.

It is also widely used in rising mains systems, where power is tapped to supply different floors in high-rise buildings. In compact substations, it manages the transition from transformer output to distribution networks within a limited space. Contractors evaluating whether to buy a busbar chamber online must consider fault levels, expansion requirements, and panel integration compatibility before final selection.

Advantages of Installing a Busbar Chamber Box

A well-designed Busbar chamber box delivers measurable efficiency and safety improvements. Compared to parallel cable systems, rigid copper busbars provide lower resistance and reduced energy losses due to improved current density.

Operational advantages include:

• Superior short-circuit strength due to rigid mounting
• Reduced space requirement versus bundled cables
• Lower fire load inside electrical rooms
• Structured and organised panel layout
• Easier future expansion via additional tap-offs

For large installations, procurement teams often request busbar chamber box bulk quotes to standardise specifications across multiple panels and optimise installation cost.

Get Busbar Chamber Boxes from Verified Suppliers on L&T-SuFin

At L&T-SuFin, we connect buyers with verified manufacturers. You can easily compare specifications, certifications and ratings before making the purchase.

The technical data can be reviewed, and you can even put in a request for the documentation aligned with the IEC 61439 standards.

Buy from a wide variety of busbar chamber box wholesale price options, be it a 100A compact unit or an 800A heavy-duty industrial one. The RFQ system lets you negotiate and pay transparently.

If you want to purchase a busbar box for an ongoing project, we offer smooth logistical support, verified sellers and products from all top brands like Havels, SELVO and more.

FAQs

What is a busbar box used for?

What is the purpose of a busbar chamber in a distribution board?

How does a busbar work?

What size is a 1000 amp busbar?
